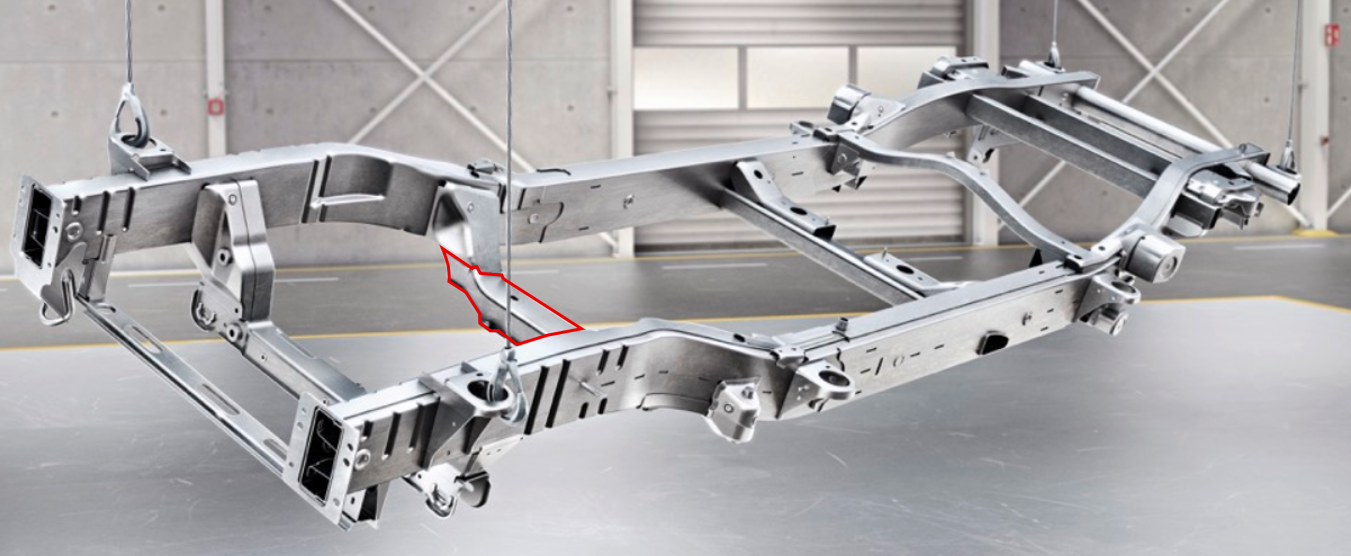

Rear engine support bolted to the main frame
PRODUCT: ENGINE CROSS MEMBER RR – Rear engine support
Structural aluminum component designed as the rear engine support, bolted directly to the vehicle’s main frame. The part is produced as a cast aluminum component with variable wall thickness and requires strict control of porosity, roughness and geometric stability.
Mass: ~6,5 Kg Dimension: ~400 × 130 × 80 mm
Material: Aluminum alloy EN 1706 – AC-43100 ST6
Raw part obtained per: Gravity / shell casting with porosity control (Porosity class 1.2 – DBL 4949)
Finished part obtained via: Machining + Deburring (shot-blasting or fine grinding allowed) + Dimensional and roughness inspection (Rz 100)
Challenge: ensure crack-free casting and geometric stability over lengths > 350 mm
OEM: Mercedes-Benz (ENGINE CROSS MEMBER RR – MOTORQUERTRAEGER HI)
PROJECT OVERVIEW
The Cross Member is a rear engine support, responsible for transferring loads to the main frame and ensuring stability of the powertrain assembly.
Throughout the project TECNOFOR managed:
- development of the AC-43100 ST6 aluminum casting process with controlled porosity (Porosity class 1.2)
- compliance with ISO 2768-m tolerances and shape specifications (3° draft angle, raised form up to 0.5 mm allowed)
- machining operations on complex geometries and long dimensions (>350 mm)
- deburring and finishing (shot-blasting or fine grinding allowed)
- control of surface roughness Rz 100 on functional areas
- integration of MBN 10435 markings and identification requirements (Smaragd, EVT, SAG 82321)
The result is a robust engine support, fully compliant with Mercedes-Benz specifications and ready for installation on the main frame.
PRODUCT EXAMPLES
Engine supports and structural aluminum components developed and validated with European Tier1 and OEM manufacturers.
